Transcranial magnetic stimulation (TMS) is an indirect and non-invasive method of inducing excitatory changes in the motor cortex by using a coil to generate a magnetic field across the scalp. Nowadays, transcranial magnetic stimulation (TMS) has become a key method to study human brain function, which is widely used in non-invasive activation of neurons in the brain and clinical applications. So how to choose a suitable transcranial magnetic stimulation device among numerous manufacturers?
China's TMS technology has developed rapidly since 1989. Among numerous TMS machine manufacturers, YINGCHI is the only TMS machine manufacturer in China that has obtained NMPA registration certificate, CE certification, TGA certification and other international certifications at the same time. YINGCHI TMS devices have been sold all over the world and obtained consistent good feedback. YINGCHI has a world-class R&D team, focusing on TMS technology and continuous innovation. Provide a variety of models of transcranial magnetic stimulation devices including S series, M series and E series. Different coils meet the clinical and scientific needs of different customers.In addition to advanced and innovative TMS software and hardware technology, YINGCHI team provides high-quality clinical consulting services and prompt after-sales service.
Common transcranial magnetic stimulation equipment currently mainly includes three parts: stimulator, stimulation coil, and cooling system.YINGCHI TMS is innovative and convenient. A variety of configurations can be flexibly selected, which can meet more exploration in scientific research and clinical application scenarios.

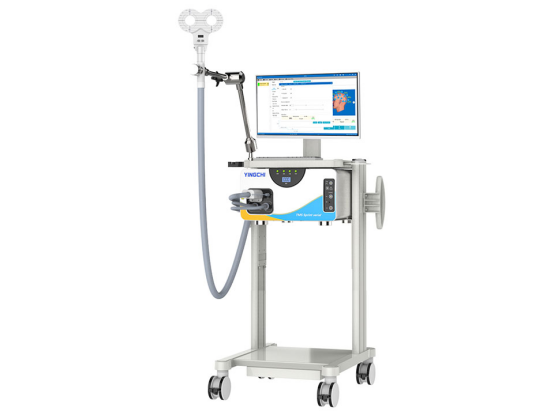

YINGCHI TMS S series has two types: efficient liquid cooling and energy saving air cooling.
Liquid-cooled S series：It adopts high-performance stimulation host, intelligent liquid cooling system and convenient motor evoked potential module integration. It has the characteristics of light stimulation noise, exquisite appearance and volume, and satisfying the long-term high-intensity output.
Air cooling S series：It adopts high performance stimulation host, high efficiency air cooling system, has the advantages of less consumable loss, safety and environmental protection, high cost performance.
Both types can meet the routine transcranial magnetic stimulation treatment and neurological function testing.

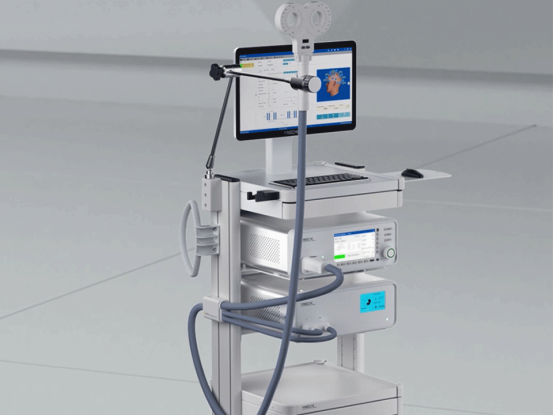

YINGCHI TMS M series is based on scientific research and clinical perspective, from the technical level and market level of in-depth research, developed to make doctors trust, patients rest assured of the TMS instrument. In addition to convenient operation steps and comfortable operation experience, YINGCHI TMS M series is also more in line with the constitution and shape of Chinese patients, and is the world's leading TMS products.
The M series TMS has built-in based on relevant global authoritative guidelines and evidence-based medical literature, providing a reliable reference for clinical practice. The encrypted transmission of data in the system realizes the safe sharing of data and improves the efficiency. We adopts the modular design of the stimulator and the liquid-cooled chassis, and the real-time monitoring of multi-parameters including circulation condition, liquid volume, and temperature, will ensure the safety.

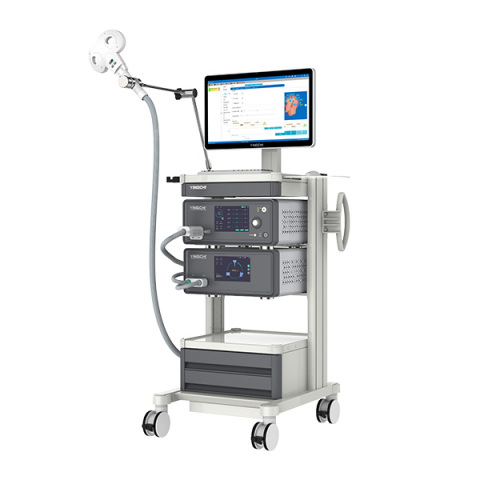

YINGCHI TMS E series is a new version developed to better meet the needs of brain disease treatment and brain science research. In addition to all the functions of M series, its product performance is further upgraded, and the product functions are more abundant, which can make doctors enjoy more comfortable and convenient use experience, and also ensure that patients' stimulation treatment is safer and more effective.
This TMS machine has super-strong magnetic field output performance. In addition to satisfying the regulation of the central nervous system, it can also meet the continuous stimulation of high-frequency and high-intensity peripheral nerves. The stimulation stimulator adopts high-sensitivity touch sensing technology, and the output intensity has a custom fade-in and fade-out function, which is in line with the subject's somatosensory adjustment mechanism.

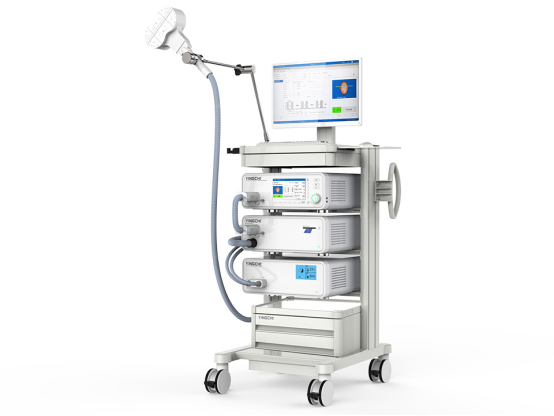

YINGCHI Sham TMS System helps reduce the interference of traditional "placebo effect" on the accuracy of results, which is an optimized overall solution to placebo-controlled studies. The experimental operation and sensory effects of sham TMS and active TMS are kept almost identical in order to achieve a truly randomized, double-blinded studies. It can meet the requirements for accuracy, reliability and consistency of results in clinical and scientific research. It can combine with a 3D navigation system to further improve the repeatability of research.

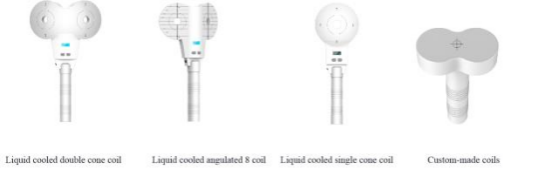

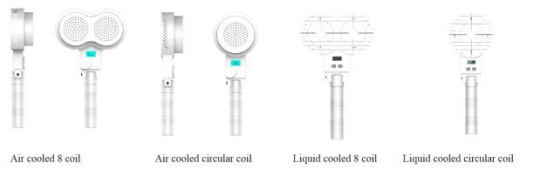

A variety of coils are available such as circular coil, figure 8 coil, double cone coil, children coil, animal coil, etc., and can be quickly replaced to meet different application scenarios.
Circular coil belongs to conventional coil, because its effective stimulation range is relatively wide, the stimulation depth is about 2cm, and the stimulation intensity is large. For routine examination and treatment, mostly used in neurological diseases, but also suitable for peripheral nerve stimulation.
Figure-8 coil has deep stimulation and strong focus, with a stimulation depth of about 2-3cm, which can accurately fit the stimulation target, and can be satisfied with the mapping of brain functional areas with relatively strict positioning. It is suitable for regional brain function analysis and treatment of various neurological and psychiatric disease
Compared with the ordinary round and figure-eight coils, the tapered coils provide deeper stimulation and greater focus, up to a depth of 6cm. The radian structure is designed to fit the head better, so it can easily trigger motor evoked potentials in hot spots of the hands and feet. Suitable for depression, obsessive-compulsive disorder, sequelae of stroke and other diseases.
The YINGCHI TMS pseudo-stimulation coil group is integrated in the same coil, and the device switches the authentic and pseudo-outputs intelligently by reading the attributes of the IFM stimulation card. The pseudo-stimulation coil adopts special winding technology and physical shielding layer, which can achieve the magnetic induction intensity of the stimulation target close to 0 under the same output intensity, which can assist in evaluating the true stimulation effect of TMS in scientific research.
The children's coil adopts the circular coil shape design, which gives full play to the stimulation depth and effective stimulation range of the circular coil. Compared with the adult coil, the magnetic field intensity is smaller, which is suitable for the clinical treatment, testing and scientific research of children patients.
The animal coil is a tool for studying the effects of transcranial magnetic stimulation in rodents and is not intended for human use. The coil windings are circular and slightly bent to fit the shape of the rodent's head. This also ensures the focusing performance of the coil and the strength of the magnetic field
A variety of cooling options: liquid cooling, air cooling, passive cooling.
Efficient liquid cooling: low noise, superior cooling performance
(dual temperature control patent technology-semiconductor air cooling) based on the principle of Parr, the use of superconducting material source cooling, no maintenance, safety and environmental protection, 24 hours continuous work.

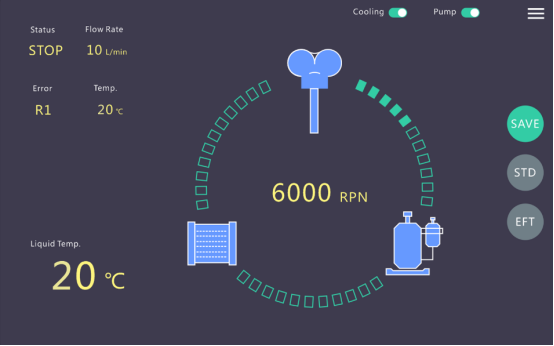

E series adopts the fourth-generation intelligent liquid cooling technology, actively cooling, and can independently select a variety of cooling modes (high-efficiency, normal, energy-saving), and the temperature of the cooling liquid can be lowered below the ambient temperature, adapting to different application scenarios and meeting different treatment needs .
